FM57LA 商业雷达和天线暗室测量系统型号LA

$ xxx 建议零售价*

关键特征与功能

有效的校准汽车感应器和雷达
提供从零部件到雷达整件的自动化测量
易于制造和研发测试，以弥合产品全生命周期的差距
良好适应性，满足室内1-220ghz各种微波远场测量
在测试未来的多波束5G和6G传感器时，执行精确的6度尺寸调整

技术参数表和关键文件

系统配置

Hardware systems
Software systems
Accessories for fixture and tools
Hardware user manual
Software user manual

如何购买

Specifications

For more details: View Data Sheet

Gain Repeatibility, Typ	0.02 dBi
HPBW Repeatibility, Typ	0.05 deg
SLL-20db Repeatibility,rms	0.08 dB
SLL-30db Repeatibility,rms	0.15 dB
System Angular Resolution	0.01 deg
System Pointing Accuracy	0.05 deg
DUT Re-positon Accuracy	0.05 deg
Back Slash Angle	0.01 deg
Auto Coordinates Calculation	6 (c_d, c_s, c_p, c_t, c_f, c_b)
TX Typ Rotary Range	POL: ±180° EL: +/-90°AZ: +/-90°
RX Typ Rotary Range	AZ1: ±180° POL: ±180° EL: ±90° AZ2: ±75°
TX Rotary Range (>77GHz)	POL: ±125° EL: +/-10°AZ: +/-10°
RX Rotary Range (>77GHz)	AZ1: ±180° POL: ±180°EL: ±60° AZ2: ±75°
LOS Alignment DOF	6 DOF
System Drive	Full Servo Drive
Testing Distance, Typ	9m
Rotation Speed	0.1°/s ～ 4°/s
Position Resolution, Typ	0.02mm RMS
TX Side Max Weight	25kg
RX Side Max Weight	50kg
Control Unit	Industrial PC + LED
Power Supply	380 VAC; 50/60 Hz, 5500 watts
Usage Temperature Range	0-40deg
Storage Temperature Range	-10 ~ 60
Product Dimension	Large（）
Typ Anechonic Chamber	12m x 8m x 6m [Lab-Model]
Testing Modes	Farfield, Multi-hybrid
System Self-calibration	Manual + Auto
Real Time CCTV	Included
Software Licenses	Aerospace Lic.
Std Option: Manual Calibration Toolkit	Included
Std Option: Automatic Calibration Toolkit	Included
Std Option: Production line automation and reporting feature	Included
Type1 Mode: Angular Calibration Functionality using Corner Reflectors	Included
Type2 Mode: ERIP Pattern Measurement Functionality	Included
Type3 Mode: Radar Simulator Testing Functionality	Upgradable
Type4 Mode: Radar Angular Resolution Measurement Functionality	Included
Type5 Mode: System Noise Measurement Functionality	Included
Type6 Mode: System RCS Pattern Measurement Functionality	Included
Type7 Mode: Passive Component Pattern Measurement Functionality	Included
Type8 Mode: ERIP Frequency Sweep Measurement Functionality	Included

Options & Upgrade

Services

Post-Purchase Upgrades
Functional Options

Post-Purchase Upgrades
FM57-AH001	Laser sensing mechanical kits for manual calibration that allows the laser goes through the kit to establish 6-DOF coherance
FM57-AH002	Laser sensing TX kits for manual calibration that yields multiple DOF adjustment and ejects laser signal
FM57-AH003	Laser sensing RX kits for manual calibration that yields multiple DOF adjustment and ouputs trigger signal by laser
Functional Options
FM57-AS001	Software module used for manual system calibration, which is the driver for AH001,AH002 and AH003 hardware module
FM57-AS003	Software module used for automatic system calibration, which allows one-click achieving transmitting and receiving coordinate alignment

Application Notes
FM57系列产品技术亮点之交钥匙测试 .pdf 商业雷达及天线暗室测试系统-FM57 系列产品技术亮点	2019-10-01	1.10 Mb
FM57 系列产品技术亮点之效率 .pdf 商业雷达及天线暗室测试系统-FM57 系列产品技术亮点	2019-10-01	971.87 Kb
FM57 系列产品技术亮点之精度.pdf 商业雷达及天线暗室测试系统-FM57 系列产品技术亮点	2019-10-01	649.99 Kb
Brochures
FM57测试系统选型手册.pdf 自动化商业雷达及天线暗室测试系统	2019-10-01	3.09 Mb
FM57测试系统宣传手册.pdf 自动化商业雷达及天线暗室测试系统	2019-10-01	1.11 Mb

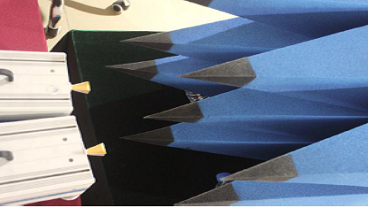

产品亮点

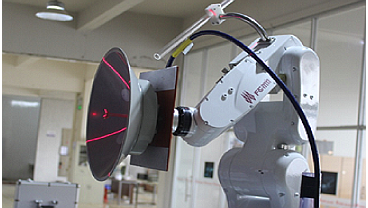

Highlight on Accuracy

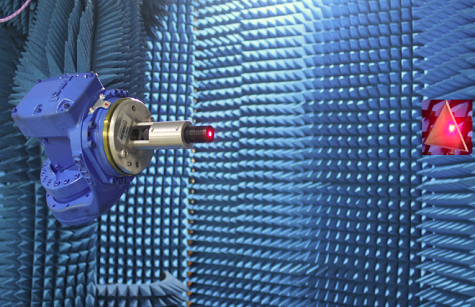

Highlight on Efficiency

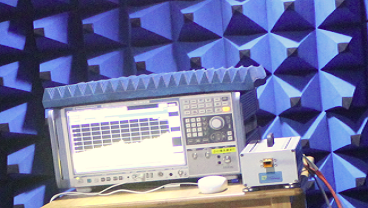

Highlight on Turn-Key System

产品配件

FM57-AH001

FM57-AH002

FM57-AH003
