FM57LE Commercial Radar and Antenna Testing System in Chamber LE-Model

$ xxx Typical Price*

Key Features and Functions
  • Effectively calibrate automobile sensors and radars
  • Provide component to full radar sensor measurements automatically
  • Ease of both manufacturing and R&D tests to bridge gap in full product life-cycle
  • Good adaptability for indoor 1-220GHz various microwave farfield measurement
  • Perform precise 6-deg of dimensional adjustment during testing for future multi-beam 5G&6G sensors
Data Sheet and Key Documents
What's Included
  • Hardware systems
  • Software systems
  • Accessories for fixture and tools
  • Hardware user manual
  • Software user manual
How to Buy

 Specifications

For more details:  View Data Sheet
Gain Repeatibility, Typ
 0.05 dBi

HPBW Repeatibility, Typ
 0.08 deg

SLL-20db Repeatibility,rms
 0.12 dB

SLL-30db Repeatibility,rms
 0.2 dB

System Angular Resolution
 0.03 deg

System Pointing Accuracy
 0.1 deg

DUT Re-positon Accuracy
 0.1 deg

Back Slash Angle
 0.02 deg

Auto Coordinates Calculation
 6 (c_d, c_s, c_p, c_t, c_f, c_b)

TX Typ Rotary Range
 POL: ±180° EL: +/-90°AZ: +/-90°

RX Typ Rotary Range
 AZ1: ±180° POL: ±180° EL: ±50° AZ2: ±50°

TX Rotary Range (>77GHz)
 POL: ±125° EL: +/-10°AZ: +/-10°

RX Rotary Range (>77GHz)
 AZ1: ±180° POL: ±180°EL: ±40° AZ2: ±50°

LOS Alignment DOF
 6 DOF

System Drive
 Full Servo Drive

Testing Distance, Typ
 9m

Rotation Speed
 0.1°/s ～ 4°/s

Position Resolution, Typ
 0.02mm RMS

TX Side Max Weight
 25kg

RX Side Max Weight
 50kg

Control Unit
 Industrial PC + LED

Power Supply
 380VAC; 50/60 Hz, 5500 watts

Usage Temperature Range
 0-40deg

Storage Temperature Range
 -10 ~ 60

Product Dimension
 Large（)

Typ Anechonic Chamber
 12m x 8m x 6m [Lab-Model]

Testing Modes
 Farfield, Multi-hybrid

System Self-calibration
 Not Included

Real Time CCTV
 Not Included

Software Licenses
 Educational Lic.

Std Option: Manual Calibration Toolkit
 Not Included

Std Option: Automatic Calibration Toolkit
 Not Included

Std Option: Production line automation and reporting feature
 Not Included

Type1 Mode: Angular Calibration Functionality using Corner Reflectors
 Included

Type2 Mode: ERIP Pattern Measurement Functionality
 Included

Type3 Mode: Radar Simulator Testing Functionality
 Not Included

Type4 Mode: Radar Angular Resolution Measurement Functionality
 Not Included

Type5 Mode: System Noise Measurement Functionality
 Not Included

Type6 Mode: System RCS Pattern Measurement Functionality
 Not Included

Type7 Mode: Passive Component Pattern Measurement Functionality
 Included

Type8 Mode: ERIP Frequency Sweep Measurement Functionality
 Not Included

 Options & Upgrade

Services
Post-Purchase Upgrades

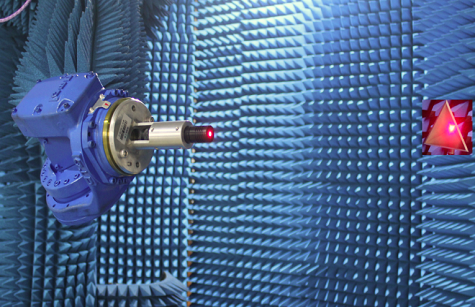

FM57-AH001 Laser sensing mechanical kits for manual calibration that allows the laser goes through the kit to establish 6-DOF coherance
FM57-AH002 Laser sensing TX kits for manual calibration that yields multiple DOF adjustment and ejects laser signal
FM57-AH003 Laser sensing RX kits for manual calibration that yields multiple DOF adjustment and ouputs trigger signal by laser
Functional Options

FM57-AS001 Software module used for manual system calibration, which is the driver for AH001,AH002 and AH003 hardware module
FM57-AS003 Software module used for automatic system calibration, which allows one-click achieving transmitting and receiving coordinate alignment

 Resource Center

Product Highlights

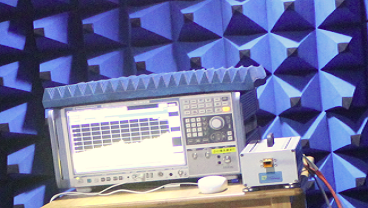

Highlight on Accuracy

Highlight on Efficiency

Highlight on Turn-Key System

Accessories

FM57-AH001

FM57-AH002

FM57-AH003
